Description

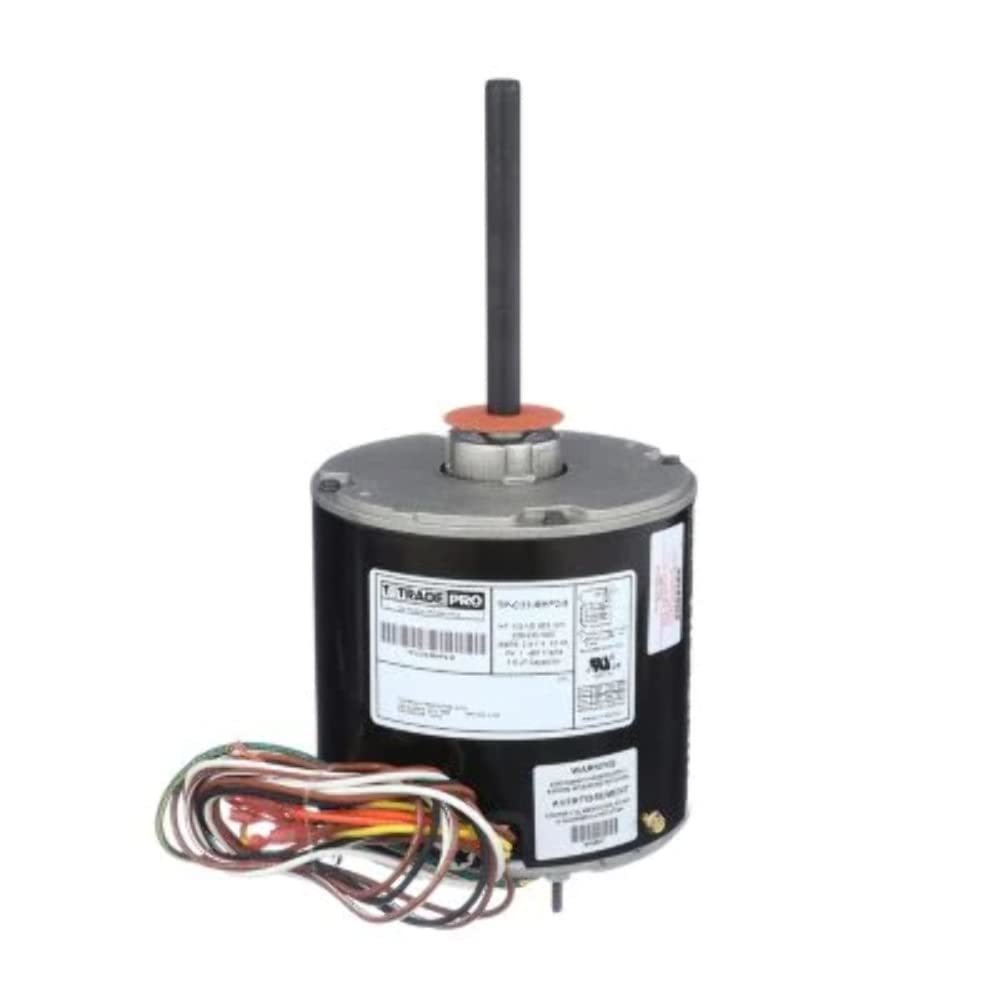

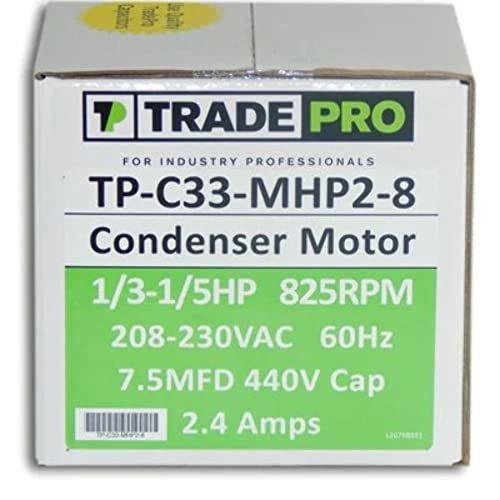

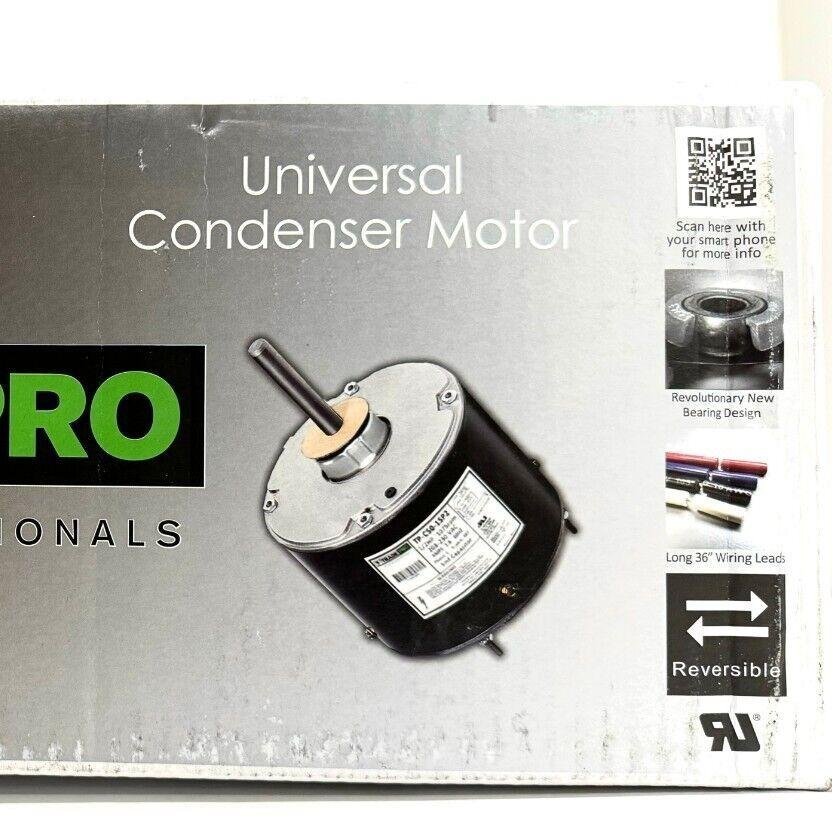

Tradepro Condenser Motor 1/5 – 1/3 HP 208/230V 825 RPM 1-Speed TP-C33-MHP2-8

• Universal fixed fractional condenser motor 208 – 230V
• Single phase 7.3 amp draw
• Speed 825 RPM
• 48Y frame 5″ keyed shaft 1/2″ diameter
• 7.5MF 370 or 440V capacitor
• Side shell mount is pre-drilled to accept mount wings and resilient mount wings.
• Dynamic self-aligning bearing with reversible direction

Amps: 2.4

Bearing Type: Self Aligning (SAB)

Capacitor MFD µF: 7.5/440

Country of Manufacture: MEX

Cubic Measurement: 0.1027

Cycle/Hertz: 60 Hz

Dimensional Weight: 4

Duty: Continuous

EAN: 0816075029705

Full Load Amps: 2.4

Insulation Class: Class B

Lead Length: 36″

Motor Enclosure: Totally Enclosed Air Over (TEAO)

Motor HP: 1/5 HP – 1/3 HP

Motor Type: PSC (Permanent Split Capacitor)

NEMA Frame: 48Y

Number of Bearings: 2

Number of Poles: 8

Number of Speeds: 1 (Single)

Phase: Single

Package Height: 6

Package Length: 15
